AXP90 Copper Pro
Full-copper cooler with four heat pipes and a 92 mm fan, built for the NerdQaxe ++ and NerdOctaxe.
Item no.: 33892
Total price · plus shipping
−5% paying with Bitcoin: €56.05
Verified vendor Listed on the official Bitaxe Legit List Secure payment
- 24h premium shipping, no customs, fast delivery
- Bitcoin, Lightning & card payment
- Open AxeOS firmware, no vendor lock-in
- 14-day right of withdrawal
Product description

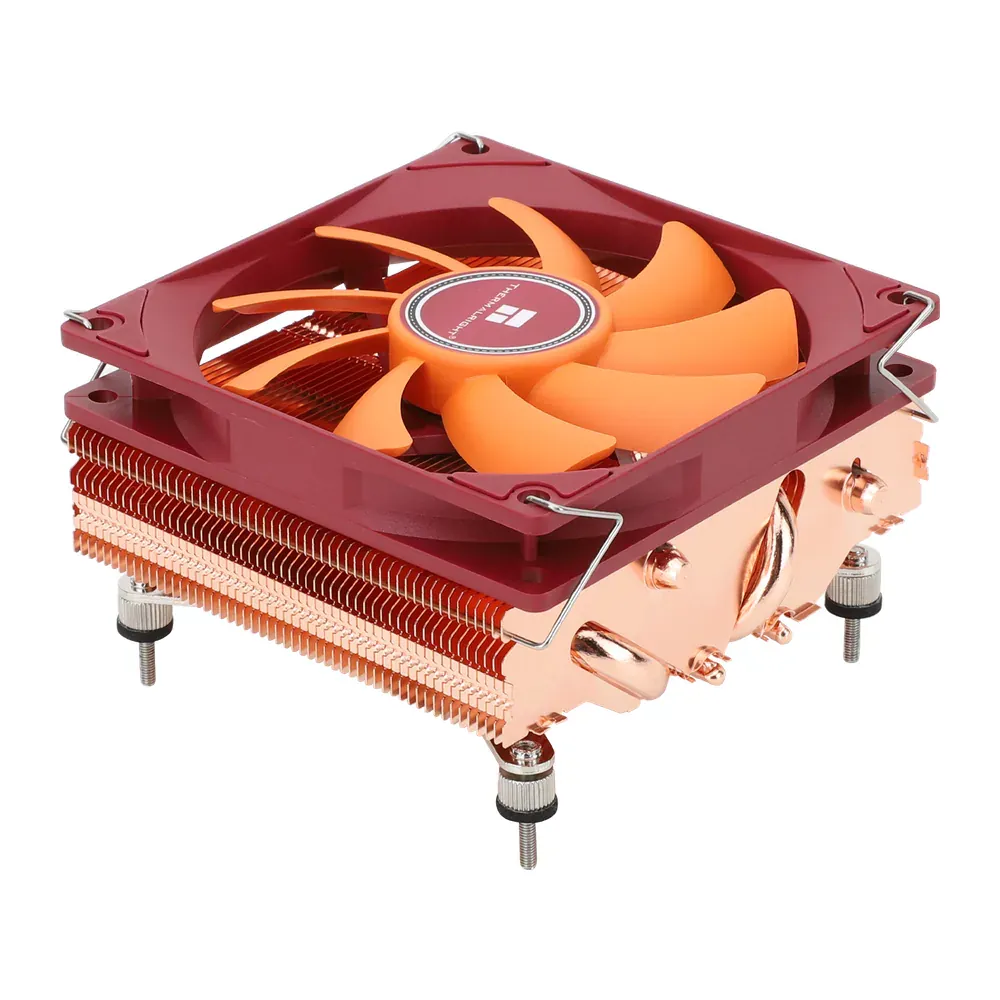

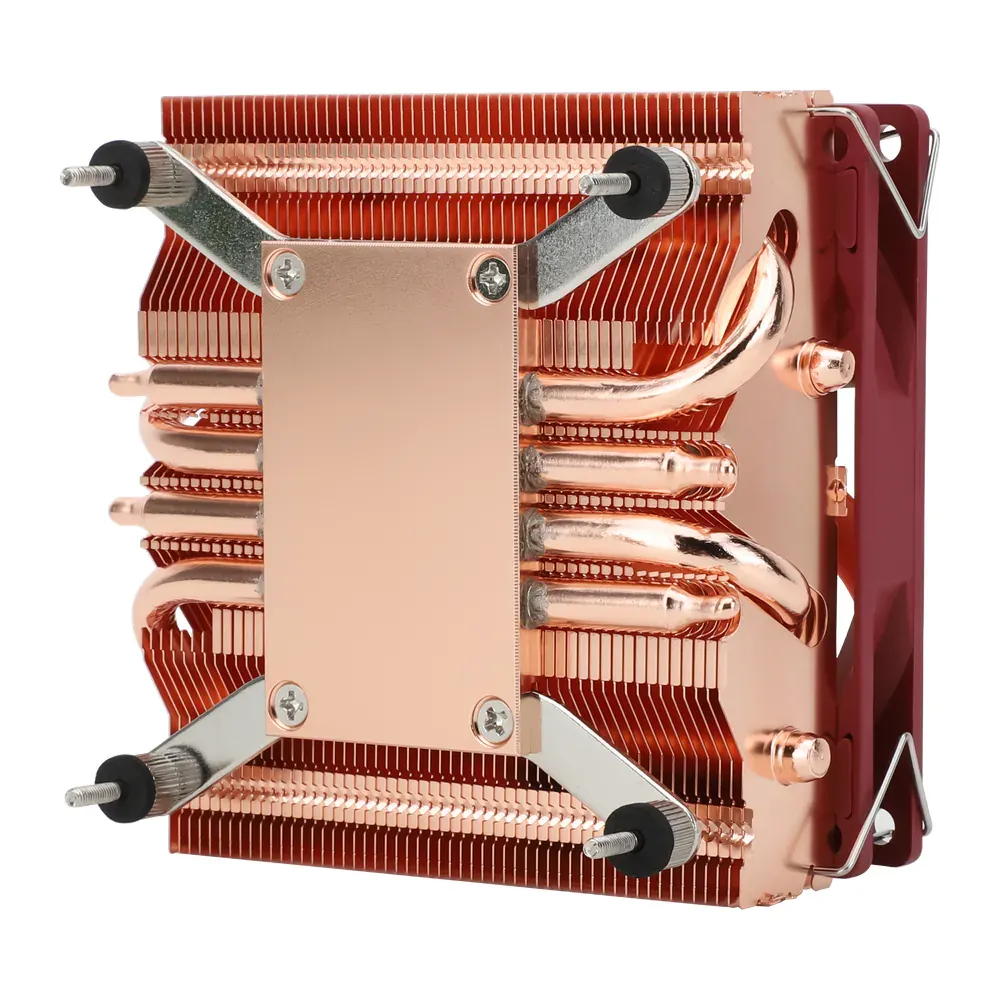

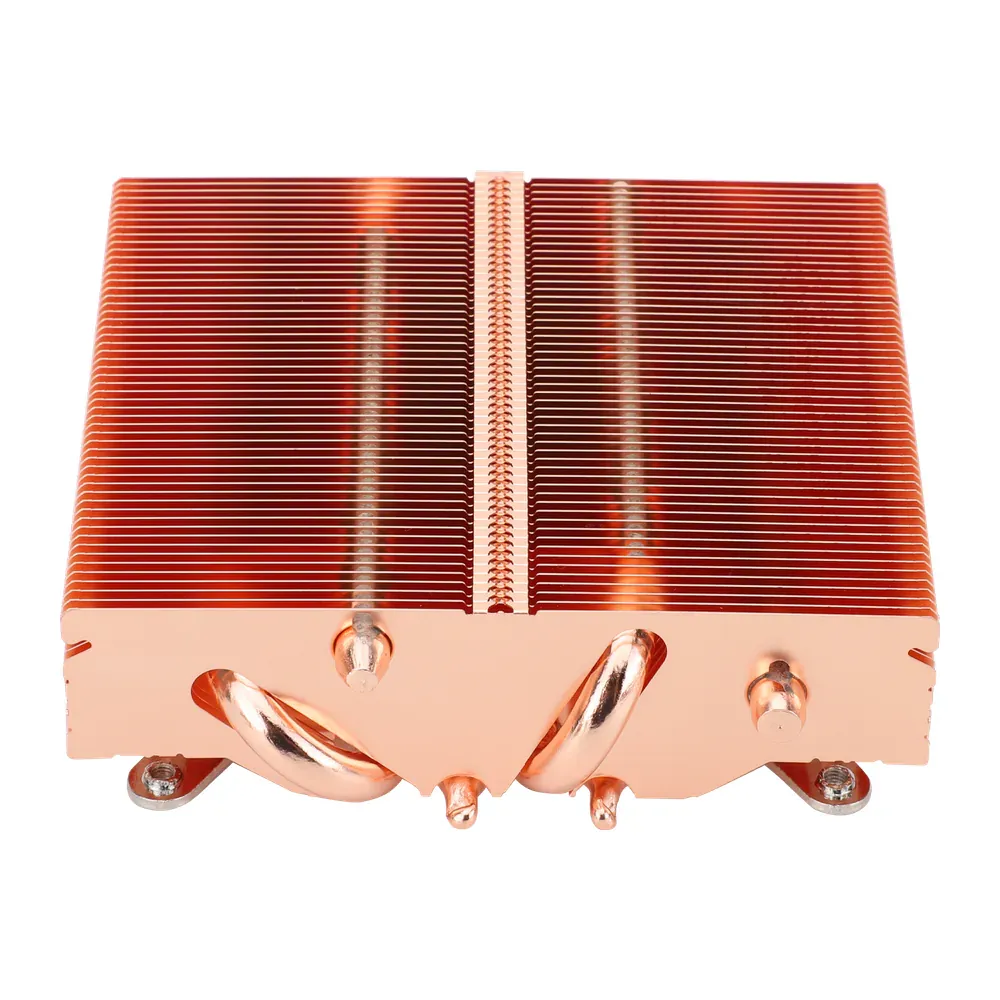

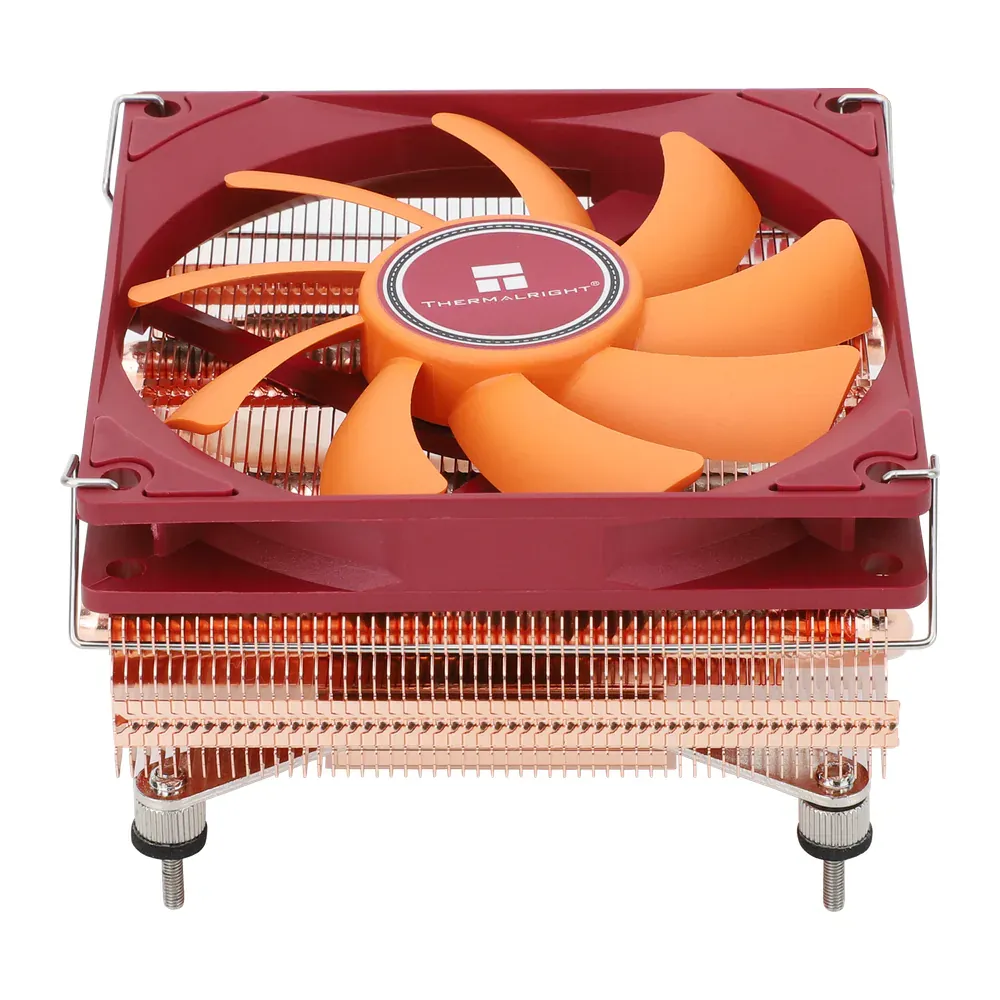

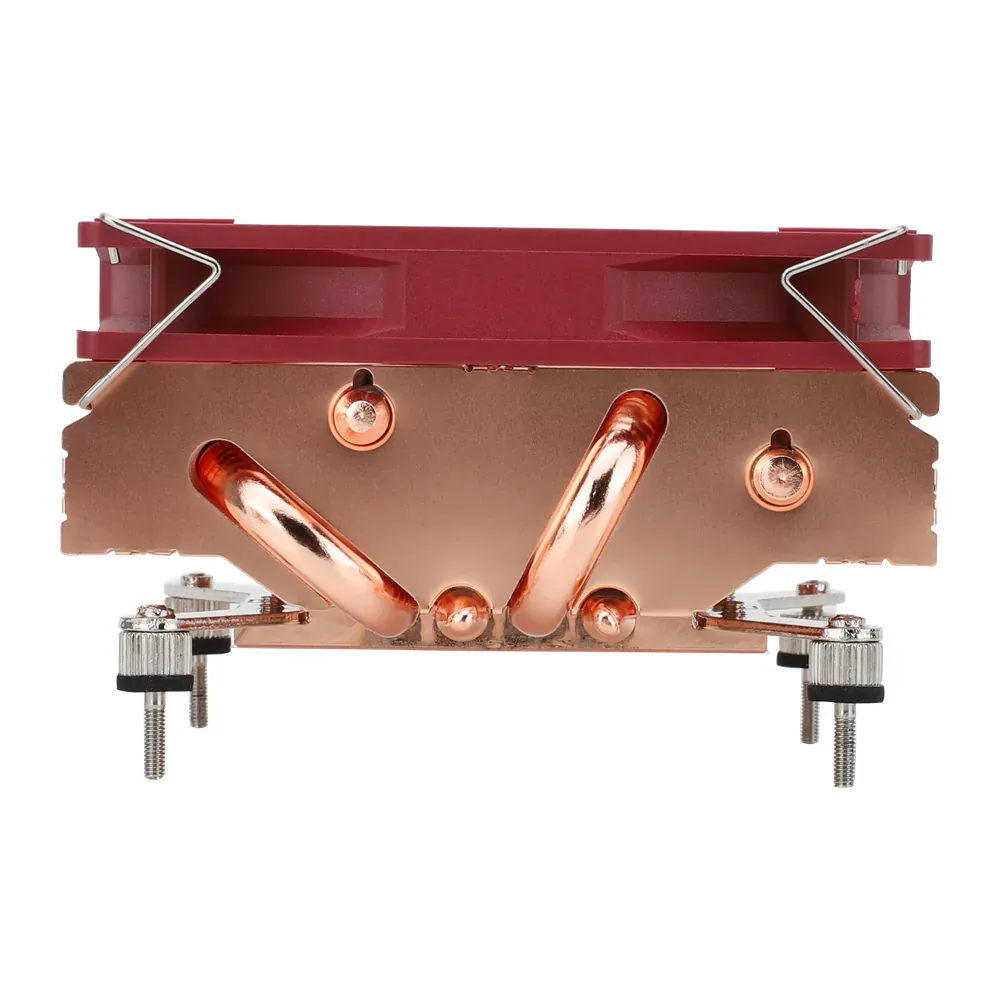

More copper for the multi-chip miners: the AXP90 Copper Pro is a Thermalright AXP90-X47 Full, the very model that comes fitted on the NerdQaxe Copper Pro. On the Full version the base plate (C1100 copper), the four 6 mm heat pipes and the entire fin stack are all copper. On top sits a slim 92 mm TL-9015R fan with PWM control. Together the cooler weighs 520 grams and measures 95 × 94.5 × 47 mm including the fan.
It is made for the NerdQaxe ++ and the NerdOctaxe. There it takes the place of the stock cooling and gives the BM1370 chips considerably more mass and surface to absorb heat and release it. That buys you distance from the temperature limit: in continuous operation, in a warm room or when you raise frequency and voltage in AxeOS. The cooler does not add hashrate by itself; it creates the headroom for it. Thermal paste and the Thermalright mounting kit are included.
The AXP90 is not suitable for the Bitaxe Gamma, Nerdaxe Gamma or Nerdaxe Gaia. Those boards power their fan with 5 volts, while the Thermalright fan is built for 12 volts: it spins too slowly there and the miner overheats. For the Bitaxe Gamma and Nerdaxe Gaia, the smaller AXP60 Copper Pro is the right choice.
What's included
- AXP90-X47 Full with TL-9015R fan
- Thermal paste
- Thermalright mounting kit
Specifications
- Cooler
- Thermalright AXP90-X47 Full
- Material
- Full copper: base plate (C1100), heat pipes, fins
- Heat pipes
- 4 × 6 mm
- Fan
- Thermalright TL-9015R, 92 × 92 × 15 mm, 4-pin PWM
- Fan voltage
- 12 V, 0.18 A
- Fan speed
- max. 2,700 rpm
- Airflow
- max. 42.58 CFM
- Noise level
- max. 22.4 dB(A) (manufacturer rating)
- Dimensions
- 95 × 94.5 × 47 mm (with fan)
- Weight
- 520 g (with fan)
- Compatible
- NerdQaxe ++ & NerdOctaxe
- Not suitable for
- Bitaxe Gamma, Nerdaxe Gamma, Nerdaxe Gaia (5 V fan header)
Frequently asked questions about AXP90 Copper Pro
Which miners does the AXP90 Copper Pro fit?
Does it also fit the Bitaxe Gamma, Nerdaxe Gamma or Nerdaxe Gaia?
What does “Full” mean on the AXP90-X47?
How loud is the fan?
Does the cooler add hashrate?
What is in the box?
AXP90 or AXP60?
